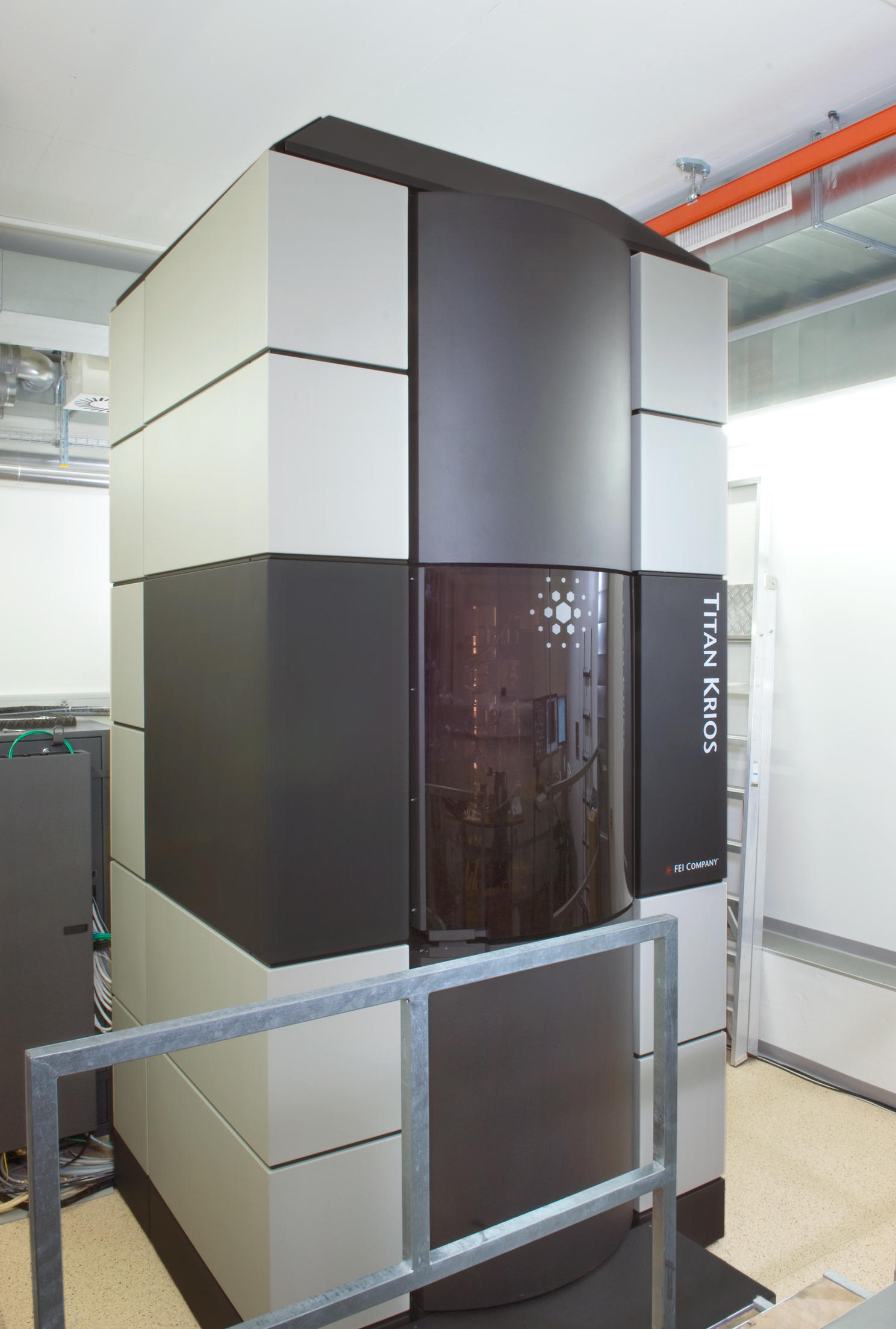

TEM - FEI Titan Krios (Irchel)
The FEI Titan Krios is a 300 kV transmission electron microscope dedicated for analysis of frozen hydrated samples (single particle analysis and cryo electron tomography) equipped with a Gatan Quantum Energy Filter with a K2 direct detection camera for image acquisition (4k x 4k pixels).
Location
University Zurich, Irchel Campus, Room Y24-F-01
Training Request
Follow this link to apply for an introduction to the microscope.
Technical Specifications
Electron column
Schottky field emission electron source.
Acceleration voltage: 300 kV.
Detector Systems
Gatan Quantum Energy Filter with Gatan K2 direct electron detection camera (4k x 4k).
FEI side mount Falcon direct electron detection camera (4k x 4k).
Accessories
Goniometer: 4-axis, fully motorized stage.
FEI cryo autoloader for 12 TEM grids.
System controls
FEI control software.
Gatan Digital micrograph for image acquisition and tomography.
FEI Xplore 3D – Batch Tomography and Dual Axis Tomography package.
Responsible Persons
If you have questions about the device please contact the responsible person.
Make sure to acknowledge the Center for Microscopy in your publication to support us.
How to acknowledge contributions of the Center for Microscopy
