CLSM - Leica Stellaris 5 upright (Irchel)

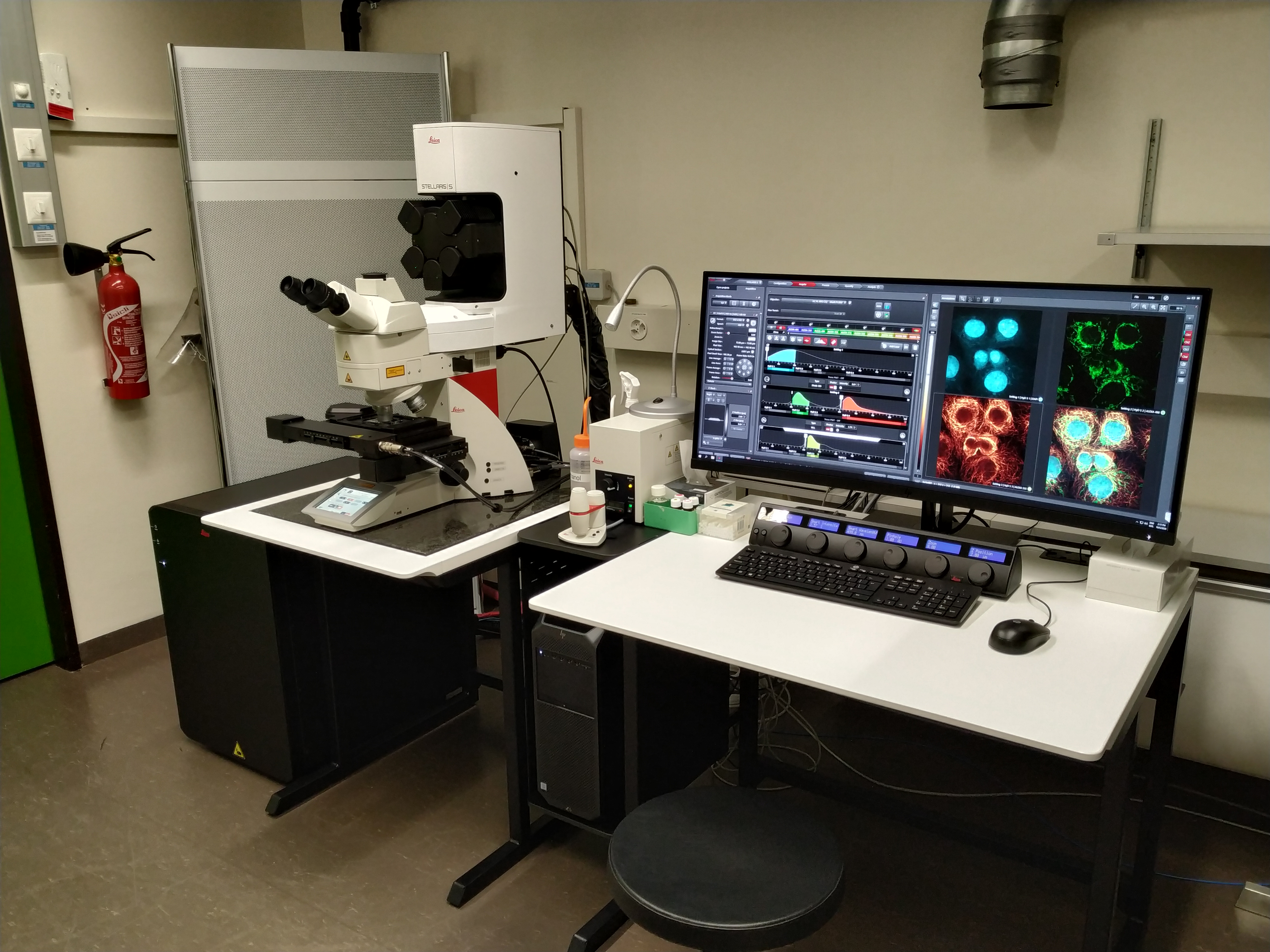

The Leica STELLARIS 5 is an automated upright confocal laser scanning microscope allowing simultaneous aquisition of 4 fluorescent channels as well as a transmission bright field channel. The newest TauSense technology gives instant access to lifetime-based information, delivering additional insights to your experiments.This system is ideal for fixed samples.
Location
University Zurich, Irchel Campus, Room Y42-H-93.
Training Request
Follow this link to apply for an introduction to the microscope.
Technical Specifications
Light sources and lasers
- Halogen lamp for transmitted light
- External fluorescence lamp - Leica EL6000
- 405 nm diode laser
- Leica white light laser (WLL - 485 nm to 685 nm excitation)
Scanners
Dual scanning system:
Regular scanner: 1 - 2600 Hz
Resonant scanner: 8000 Hz
Objectives
| Name | Magnification | NA | Immersion | WD (mm) |
|---|---|---|---|---|
| HC PL FLUOTAR | 10x | 0.3 | Air | 11.0 |
| HC PL APO CS2 | 20x | 0.75 | Air | 0.62 |
| HC APO L U-V-I | 20x | 0.5 | Water (Dip-in) | 3.5 |
| HC PL APO CS2 | 20x | 0.75 | IMM | 0.66 |
|
HC APO L U-V-I |
63x | 0.9 | Water (Dip-in) | 2.2 |
| HC PL APO CS2 | 63x | 1.3 | Glycerol | 0.3 |
| HC PL APO CS2 | 63x | 1.4 | Oil | 0.14 |
CS2 objectives: improved color correction, perfect VIS-405; IMM = multi immersion (either water, glycerol or oil)
Detector System
4 Hybrid (Power HyD S) detectors, and one additional detector for transmission (Trans PMT). Excitation controlled by AOTF. Accurate emission detection by spectral detectors.
Fluorescence Filters
| Name | Excitation Range | Excitation Filter | Dichroic | Emission Filter |
|---|---|---|---|---|
| DAPI | UV | BP 350/50 | 400 | BP 460/50 |
| GFP | blue | BP 470/40 | 495 | BP 525/50 |
| RHOD | green | BP 546/10 | 560 | BP 585/40 |
Make sure to acknowledge the Center for Microscopy in your publication to support us.
How to acknowledge contributions of the Center for Microscopy
Remarks
This microscope acquires images with improved axial resolution compared with more coventional widefield microscopes.The newest TauSense technology gives instant access to lifetime-based information, delivering additional insights to your experiments. In addition to the multicolor images in fixed samples the microscope can acquire large tile scans fully automated thanks to the LAS X Navigator.
